CAPMP3617ALA 3 Ton Evaporator A Coil Cased Multipoise R-410A
$ 93.23

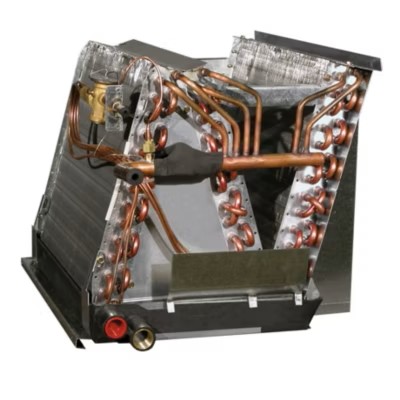

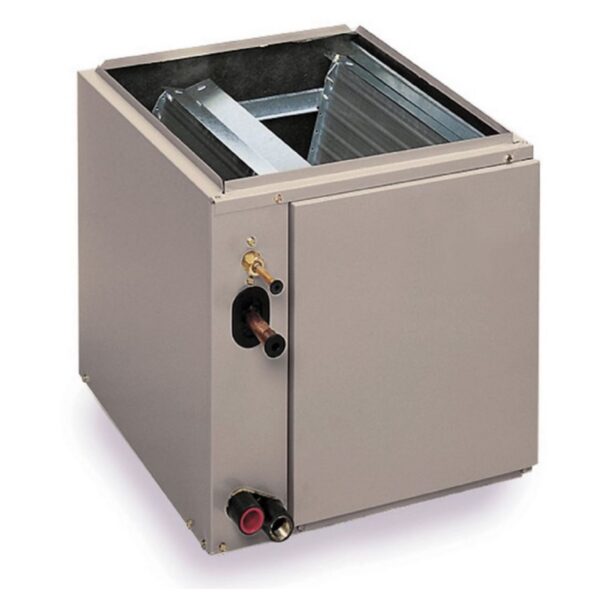

Description CAPMP3617ALA 3 Ton Evaporator A Coil Cased Multipoise R-410A – E:Mail: [email protected] to confirm availability or for volume discounts CAPMP3617ALA C = Coil Product A = A Coil Type P = Puron® Refrigerant (R-410A) TXV Refrigerant Type M = Multipoise Coil Configuration P = Painted Cabinet Finish 36 = 3 Ton Unit Capacity 17 = 17″ in (432 mm) Cabinet Width A = 1st Revision Level L = Aluminum Tubing Design A = Basic Variations This coil is available for use in Puron® Refrigerant (R-410A) only. It is a cased A-coil that is housed in a durable, 24 gauge, pre-painted taupe metallic cabinet. The fully-insulated cabinet (foil faced with R-2.1 insulation properties) provides for quiet efficient operation of the evaporator coil. This multipoise coil offers the most in installation application flexibility, one coil for a variety of applications with fewer SKUs to stock. DESIGN FEATURES Performance – Designed with performance in mind, this new A-coil offers low pressure drops to enhance system performance and airflow characteristics. Thermostatic Expansion Valves (TXV) – All Bryant coils have refrigerant-specific, factory-installed TXVs. Durable Condensate Pans (2) – The corrosion-resistant drain pans, one for vertical applications and one for horizontal, are designed in a “fiberglass reinforced thermoset polyester” material (FRTP) that offers unsurpassed pan strength. It is engineered with proper slope in both pans to help ensure water drainage, improved moisture removal, and home comfort. Refrigerant Connections – This coil is provided with industry proven sweat connections for leak-free operation to maintain system reliability. The side mounting tubing to the coil slabs allows for easy cleaning/servicing of the coils, as well as easy access to the TXV. Burst Pressure – This coil meets or exceeds burst pressure of 2100 psi, which is at least three to five times the pressure it will see in actual application. UV Knockouts – The cased coil also comes with factory-installed UV knockouts for quick and easy installation of UV lights. Serviceability – This coil comes with a “split delta plate” for easy, quick access to the coil for service and cleaning. Also, after the door is removed, the coil is removable from the front of the unit without use of any tools. Attributes Air Flow Direction Multi-Position Approvals UL Listed; UL Recognized Brand Payne® Bundled Price false CE – Sale Code NO RETURNS:RED CFM 900-1,500 Cabinet Width 17 Cased true Coil Fin Material Aluminum Coil Pipe Material Copper Coil Shape Designation A-Coil Coil Type Cased Cooling Capacity 18,000-57,500 Cooling Rated Capacity (Btu/h) 36000 Corrosion Protected Coil false Country of Origin MEX Cubic Measurement 6.2141 Dimensional Weight 82 Drain Connection Quantity 2 Drain Connection Size 3/4″ ERP ID CAPMP3617ALA Liquid Line Fitting Type Sweat or Braze Liquid Line Size (OD) 3/8″ Metering Device TXV/TEV – Thermostatic Expansion Valve OPT Code 1PCAPMP3617ALA Product Family CAPMP Prop 65 false Refrigerant R-410A Suction Line Fitting Type Sweat or Braze Suction Line Size (OD) 3/4″ Tonnage 3 UOM EA UPC See Optical
